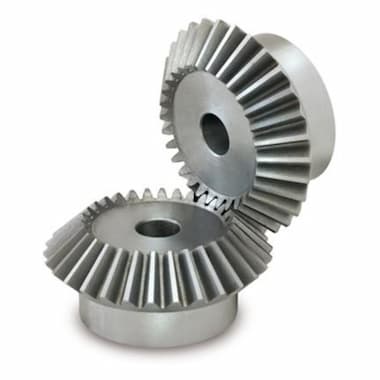

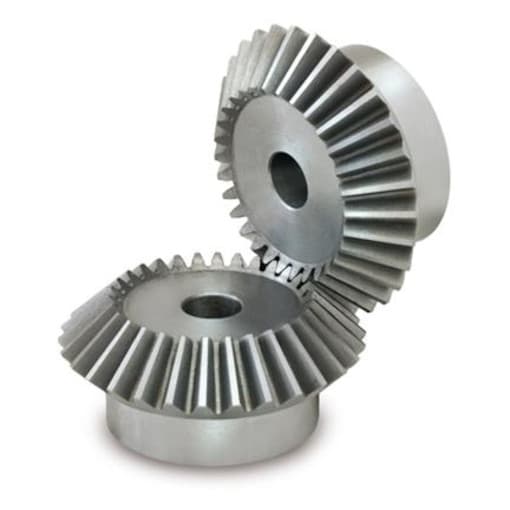

OKS M2 Z16/32 A (1:2, Steel)
Bevel Gear
Price without VAT: 712,40CZK
Price including VAT: 862,00CZK with VAT
Catalogue price excluding VAT:
726,00CZK
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Specifications
Dimensions
Bevel Gear Description
OKS M2 Z16/32 A (1:2, Steel) are machine parts used to transmit torque between two shafts with different axes.
They are supplied in modules M1 to M5. Bevel gears are most often supplied as a gear train (a pair of gears) with a ratio of 1:1, 1:1.5, 1:2, 1:2.5, 1:3, 1:3.5 and 1:4. They can also be supplied as separate wheels.
Bevel gears with straight teeth are divided according to type into type A according to DIN 3967 in accordance with UNI 6588, or type B – Gleason System.
The bevel gears we offer have straight teeth and an angle of engagement of 20°.
Typical Applications
Bevel gears are designed for general use in mechanical engineering.
The standardized bevel gears we supply are designed primarily for basic, simpler constructions and technical solutions for conveyors, presses, gearboxes, woodworking machines, agricultural machines, but of course also for many other applications.
Materials
Steel C45 (ČSN 12050), gearing not hardened.
Documents for Download
Dimensions and Parameters of Bevel Gears
TYMA CZ Data Sheets
Czech and English (PDF 1.09 MB)
